Jumper R8 R1 Plus R1F Receiver 16CH Sbus for Frsky T16 Pro plus D16 D8 Mode Radio Remote R8 Only for PIX PX4 APM flight Control
 |
| Jumper R8 R1 Plus R1F Receiver 16CH Sbus for Frsky T16 Pro plus D16 D8 Mode Radio Remote R8 Only for PIX PX4 APM flight Control |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 4000148923280 |
| Vendor | TrustWorthy INT'L Holding Group |
| Category | Toys & Hobbies - Remote Control Toys |
Description :

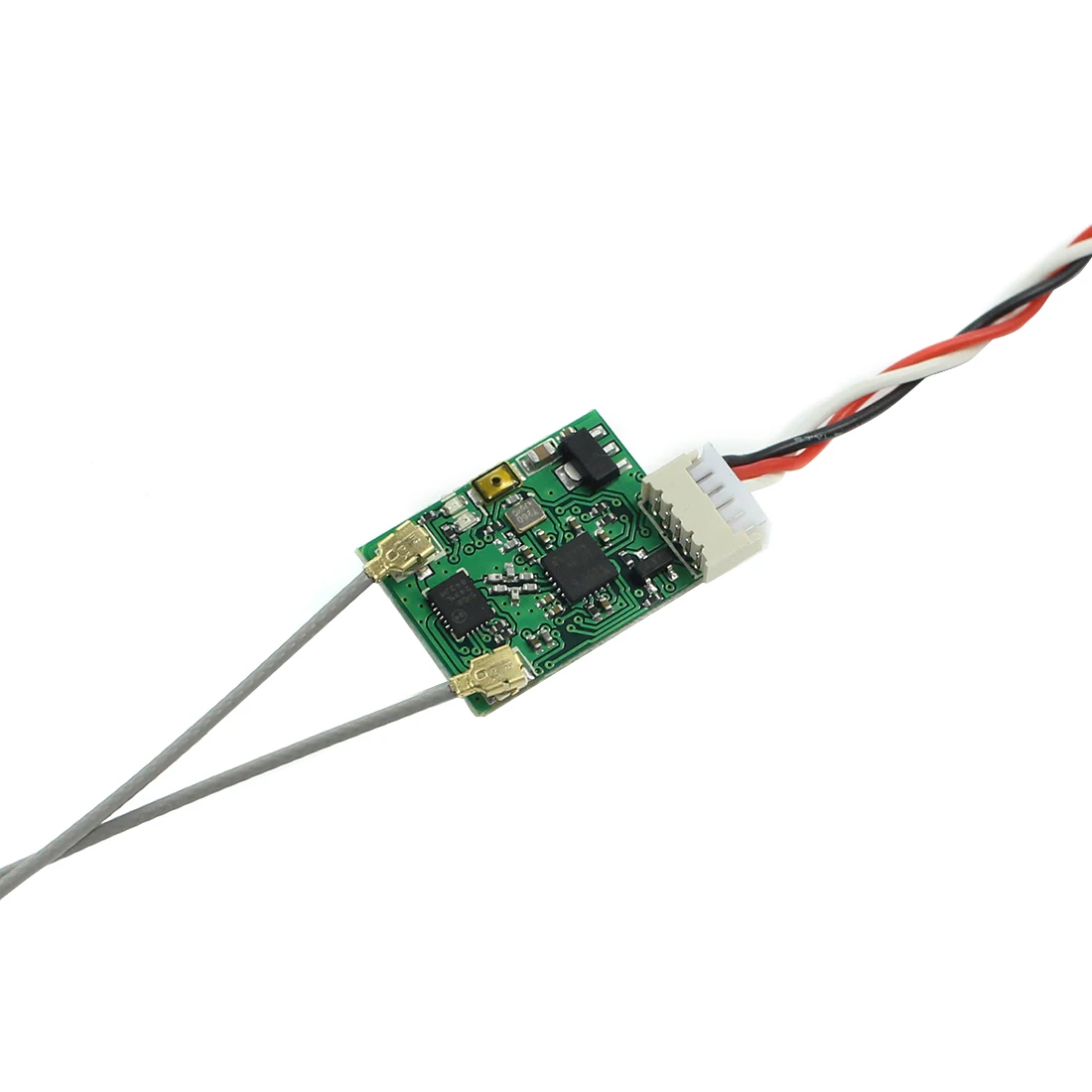

It is compatible with all devices using the Frisky D16 mode, with integrated redundancy, telemetry and smart port enable, and the IPEX connector makes it easier to replace the antenna.Technical Parameters:Number of channels: 16ch (SBUS)RSSI (Signal Strength Indication) output: 0-3.3vData return: S.portOperating voltage range: 4.0~6VOperating current range: 80mA@5VEffective distance: full distance (>1.5km)Compatibility: D16 mode FrSky Taranis D16 ModeVolume: 20*15*4mm (without antenna)Weight: <2gBind mode:Press and hold the receiver's frequency button, turn on the power, the red and green lights are always on, and the receiver enters the frequency mode. The remote control turns on the frequency.The receiver is successfully paired and the green light flashes slowly. The remote control exits the frequency, the receiver is powered back on, and the green light is on. When the receiver loses its signal, the red light is on.
Jumper R1 receiver Details :
R8 receiver Details :
The R8 receiver is the first receiver that can directly transmit the PIX and PX4 flight control data (TX, RX) to the remote control of the world, and can display the flight control data to the remote control through the APM script!
YOUTUBE: https://youtu.be/BYaqQdHxf7o
